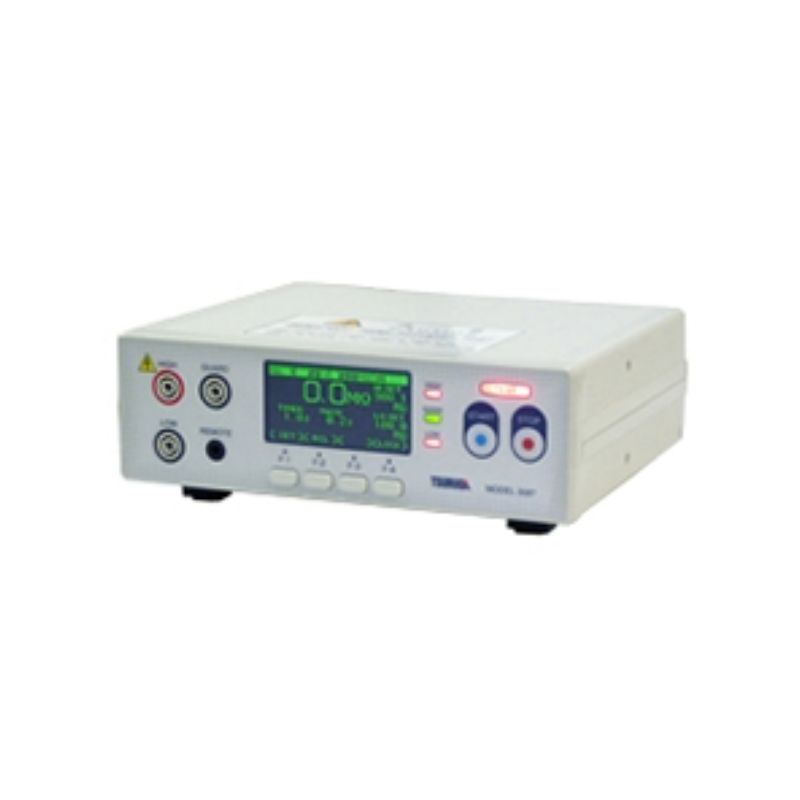

| Code | Description |
|---|---|
| X | RS-232C |
| 04 | RS-232C + BCD (open collector) |
| Test voltage | Resistance range | Accuracy | ||
|---|---|---|---|---|
| ± (2% of rdg.+3 digit) | ± 5% of rdg. | ± 30% of rdg. | ||
| DC 25 V ～ DC 99 V | 2.000 MΩ | 0.000～2.000 MΩ | - | 2.010～4.990 MΩ |
| 20.00 MΩ | 1.80～20.00 MΩ | - | 20.10～49.90 MΩ | |
| 200.0 MΩ | 18.0～100.0 MΩ | 100.1～200.0 MΩ | 201.0～999.0 MΩ | |
| DC 100 V ～ DC 499 V | 2.000 MΩ | 0.000～2.000 MΩ | - | 2.010～4.990 MΩ |
| 20.00 MΩ | 1.80～20.00 MΩ | - | 20.10～49.90 MΩ | |
| 200.0 MΩ | 18.0～100.0 MΩ | 100.1～200.0 MΩ | 201.0～499.0 MΩ | |
| 2000 MΩ | - | 180 ～2000 MΩ | 2010 ～5000 MΩ | |
| DC 500 V ～ DC 1000 V | 20.00 MΩ | 0.00～20.00 MΩ | - | 20.10～49.90 MΩ |
| 200.0 MΩ | 18.0～200.0 MΩ | - | 201.0～499.0 MΩ | |
| 2000 MΩ | 180 ～1000 MΩ | 1001 ～2000 MΩ | 2010 ～9990 MΩ | |
| Output voltage |
DC 25～1050 V (Resolution: 1 V), Open voltage： ±(1% + 5 V) of output voltage |
|---|---|
| Open circuit voltage | Less than 130 % of rated voltage |
| Rated current | Less than 1 mA |
| Display |
Measured value: 0～9990 2.7 inch organic EL display (OLED), color: green |
| Sampling cycle | |
|
Response speed (During NG judgement) |
|
| Parameter hold | Memorize and hold the parameter with EEPROM for 10 years. |
| Insulation resistance | All terminals – External case: DC500V More than 100 MΩ |
| Withstand voltage |
All terminals – External Case: DC 2000 V 1min. All terminals – External Case: DC 500V more than 100 MΩ Measurement terminals – control input/output terminals and data input/output terminals: AC 1500 V 1min. |
| Power supply | AC 100～240 V（50/60 Hz） |
| Power consumption | 28 VA MAX. |
| Operating environment | 0～50°C, less than 90% RH（no condensation） |
| Storage environment | -20～70°C, less than 70% RH (no condensation) |
| Size | 205(W)×64(H)×169(D)mm（not included protuberance） |
| Weight | |
| Accessories | Power cord (1), Fuse (1), Operating manual (1) |
| Optional Accessories |
|---|
LOW probe
HIGH probe
HIGH probe with switch +LOW probe |
| Power supply cord for AC 200V 5880-23-030 |
| Panel mounting bracket 5811-31 |
