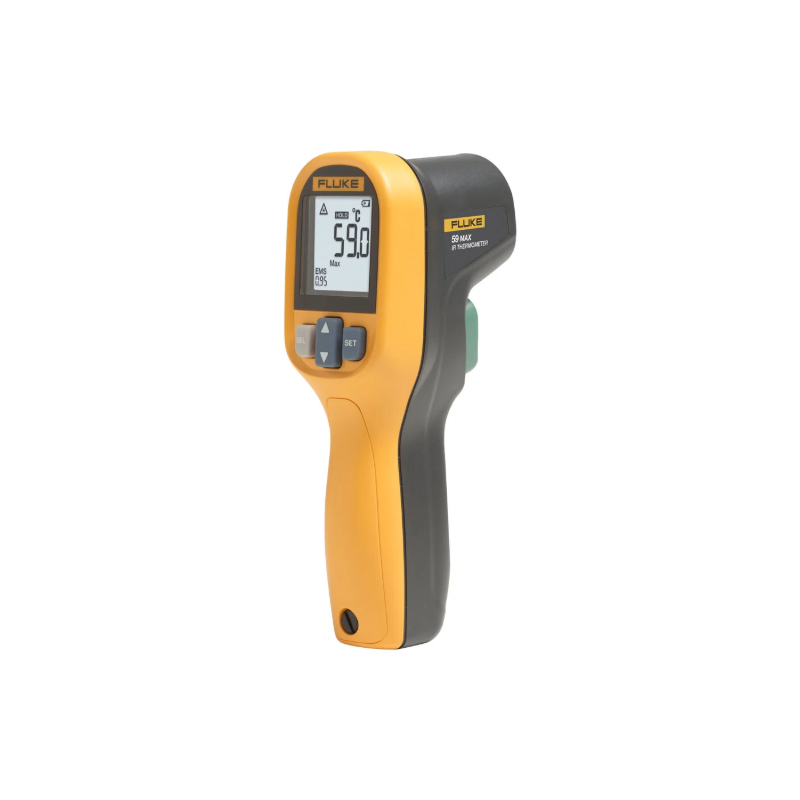

Fluke 59 MAX 紅外線測溫儀是一款高精度溫度計，不僅提供準確且重複性的測量，還能符合您的預算需求。利用Fluke 59 MAX 亮眼的背光LCD顯示屏，您可以對變壓器、馬達、泵、配電盤、斷路器、壓縮機、管道及通風口進行非接觸式的溫度測量。
設計簡單易用
它操作極其簡便，且體積小巧，足夠適合手持並輕鬆放入您的工具袋。經過耐用設計，可承受1米的跌落，確保Fluke 59 MAX在您需要時依然可靠運行。該紅外測溫儀提供多種測量功能：
它具備8:1的距離與測點比以及單點激光瞄準，確保測量準確無誤。溫度測量範圍從-30°C至350°C（-22°F至662°F），可測量並追蹤各類溫度範圍。
| Specifications | ||
| Temperature Range | -30°C to 350°C (-22°F to 662°F) | |
| Accuracy (Calibration geometry with ambient temperature 23°C ±2°C) | ≥ 0°C | ±2.0°C or ±2.0% of reading, whichever is greater |
| ≥ -10°C to <0°C | ±2.0°C | |
| < -10°C | ±3.0°C | |
| ≥ 32°F | ±4.0°F or ±2.0% of reading, whichever is greater | |
| ≥ 14°F to <32°F | ±4.0°F | |
| < 14°F | ±6.0°F | |
| Response Time (95%) | < 500 ms (95% of reading) | |
| Spectral Response | 8 mm to 14 mm | |
| Emissivity | 0.10 to 1.00 | |
| Distance to Spot Ratio | 8:1 (calculated at 90% energy) | |
| Display Resolution | 0.1°C (0.2°F) | |
| Repeatability (% of reading) |
±1.0% of reading or ±1.0°C (±2.0°F), whichever is greater |
|
| Power | 1 AA IEC LR06 Battery | |
| Battery Life | 12 hours with laser and backlight on | |
| Weight | 220 g (7.76 oz) | |
| Size | 156 x 80 x 50 mm (6.14 x 3.15 x 2 in) | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F), (without battery) | |
| Operating Humidity | 10% to 90% RH non-condensing @ 30°C (86°F) | |
| Operating Altitude | 2000 meters above mean sea level | |
| Storage Altitude | 12,000 meters above mean sea level | |
| Drop Test | 1 m | |
| Ingress Protection Rating | IP40 per IEC 60529 | |
| Vibration and Shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms | |
| Compliance | EN/IEC 61010-1 | |
| Laser Safety | FDA and EN 60825-1 Class II | |
| Electromagnetic Compatibility | 61326-1 EN 61326-2 | |
