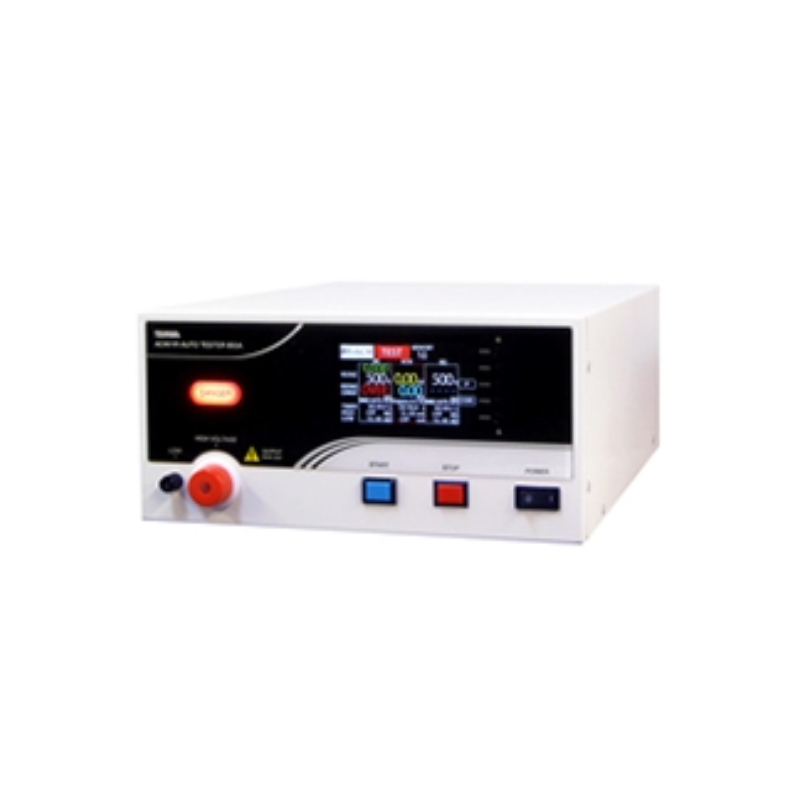

-耐電壓試驗為AC5kV（500VA），絕緣電阻試驗為DC500/1000V
-耐電壓試驗電壓具有上升和下降時間設置功能
-介面裝備遠端I/O和RS-232C
-配備易讀且易於操作的彩色液晶顯示屏
-附帶實用軟體
|
Test voltage
|
|
Output voltage
|
AC 0.2 to 5.00 kV (50 Hz and 60 Hz switchable)
|
|
Output capacity
|
500 VA (5 kV, 100 mA)
Continuous application time of the maximum current output within 1 min.
|
|
Wave form
|
Sine wave ( Rate of strain: Less than 5 %, when No-load applied.)
|
|
Power frequency
|
50 / 60 Hz
|
|
Voltage fluctuation rate
|
Less than 15 % (Maximum rating ➔ No-load: in resistive load)
|
|
Voltage application method
|
Zero cross switch
|
|
Voltage measurement
|
|
Rectification method
|
Average rectified effective value display
|
|
Digital display
|
Applied voltage is displayed during test, and the value is retained after the test end.
|
|
Measurement accuracy
|
± (0.5 % of F.S + 10 V)
|
|
Current measurement
|
|
Rectification method
|
Average rectified effective value display
|
|
Digital display
|
Measurement range 0.00 to 99.99 mA
Leakage current is displayed during test, and the value is retained after the test end.
|
|
Judgment method
|
|
Upper limit
|
Digital comparator, Analog comparator (current more than 100 mA can be detected)
|
|
Lower limit
|
Digital comparator
|
|
|
Setting range
|
|
Upper limit
|
0.05 to 99.99 mA
|
|
Lower limit
|
0.01 to 50.00 mA /OFF
|
|
Resolution
|
0.01 mA
|
|
|
Judgment conditions
|
|
Upper limit ≧ Leakage current ≧ Lower limit
|
・・・ GOOD
|
|
Upper limit ＜ Leakage curent
|
・・・ HIGH NG
|
|
Lower limit ＞ Leakage current
|
・・・ LOW NG
|
|
|
Test time
|
|
Setting range
|
00:00.2 to 99:59.9 s and OFF (continuous)
|
|
Setting resolution
|
0.1 s
|
|
Time display
|
|
During test
|
Remaining time is displayed, when timer is ON.
Elapsed time is displayed, when timer is OFF.
|
|
End of test (during wait)
|
Set value is displayed.
|
|
|
Setting accuracy
|
Set value ± (0.1 % + 20 ms)
|
|
Rise time
|
|
Function
|
Voltage rises linearly till test value in setting time.
|
|
Setting range
|
00:00.1 to 01:59.9 s and OFF
Setting resolution 0.1 s
|
|
Setting accuracy
|
Set value ± (0.1 % + 20 ms)
|
|
Fall time
|
|
Function
|
Voltage falls linearly from test value to 0 V in setting time.
|
|
Setting range
|
00:00.1 to 01:59.9 s and OFF
Setting resolution 0.1 s
|
|
Setting accuracy
|
Set value ± (0.1 % + 20 ms)
|
Insulation resistance test
|
Test voltage
|
|
Rated measuring voltage
|
DC 500 V/ 1000 V
|
|
Open circuit voltage
|
Within 125 % of rated measuring voltage
|
|
Rated measuring current
|
1 mA
|
|
Short circuit current
|
Less than 15 mA
|
|
Display
|
0 to 9990 MΩ Zero suppress Auto range
Insulation resistance is displayed during test.
Resistance value at the end of test is retained.
|
|
Test judgment
|
|
Judgment method
|
Upper and Lower limit by digital comparator
|
|
Setting range
|
0.01 to 99.99 MΩ/0.1 to 999.9 MΩ/1 to 9999MΩ
|
|
Judgment conditions
|
|
Upper limit ≧ Leakage current ≧ Lower limit
|
・・・ GOOD
|
|
Upper limit ＜ Leakage curent
|
・・・ HIGH NG
|
|
Lower limit ＞ Insulation resistance
|
・・・ LOW NG
|
|
|
Test time
|
|
Setting range
|
00:00.2 to 99:59.9 s and OFF
Setting resolution 0.1s
|
|
Setting accuracy
|
Set value ± (0.1 % + 20 ms)
|
|
Time display
|
|
During test
|
Remaining time is displayed.
|
|
End of test (during wait)
|
Set value is displayed.
|
|
|
Response time
|
Display response and judgment time (medium value).
|
Auto range
|
0.4 s
|
|
Fixed range
|
0.2 s
|
|
Setting accuracy
|
Set value ± (0.1 % + 20 ms)
|
|
|
Mask time
|
|
Setting range
|
00:00.1 to 01:59.9 s and OFF
Setting resolution 0.1 s
Mask time < Test time
|
|
Discharge function
|
|
Electric charge on specimen can be discharged.
|
Interface
|
RS-232C Utility software is optional.
|
|
Function
|
To set test conditions and output judgment results.
|
|
Connector
|
D-sub 9P
|
|
Transmission system
|
Asynchronous method
|
|
Transmission speed
|
9600/19200/38400 bps
|
|
Data length
|
8 bit
|
|
Parity
|
None/Even/Odd
|
Specification
|
Power supply
|
AC 100 to 240 V 50/60 Hz
|
|
Power supply voltage tolerance range
|
AC 90 to 250 V
|
|
Power consumption
|
|
AC 100 V
|
During standby Approx. 70VA / Maximum load Approx. 730VA
|
|
AC 200 V
|
During standby Approx. 135VA / Maximum load Approx. 750 VA
|
|
|
Operation ambient temperature
|
0 to 40 ℃
|
|
Operation ambient humidity
|
20 to 80 %RH (No-condensing)
|
|
Storage temperature
|
-20 to 70 ℃
|
|
Withstand voltage
|
Power terminal - Outer box AC 1350 V 1min
|
|
Dimensions
|
320 (W) x 150 (H) x 430 (D) (Unit: mm)
|
|
Weight
|
Approx. 18 kg
|
|
Accessory
|
|
High voltage cable 2 m
|
1 pair
|
|
Earth cord 3 m
|
1 pc
|
|
Power cord 2.5 m
|
1 pc
|
|
Remote I/O plug
|
1 pc
|
|
Operation manual
|
1 pc (CD)
|
|
|
Option
|
|
RS-232C cable
|
5881-11-018
|
|
Utility software (RS-232C)
|
5890-18
|
|
可應用於:
馬達和發電機
火星塞
電容器
連接器
航空組件
變壓器
電線和電纜
線圈和電感
開關和繼電器
