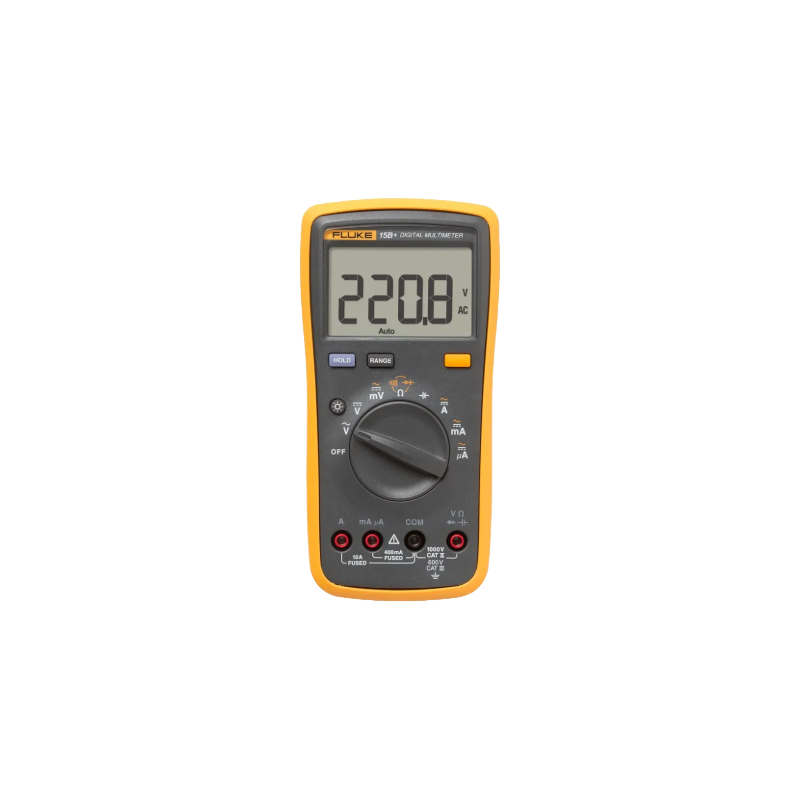

解鎖專業級的精確度、耐用性與安全性，選擇Fluke 15B+數位萬用表。Fluke 15B+將數位萬用表所需的所有核心功能集成於一個便攜、耐用的工具中，即使戴著手套也能輕鬆單手操作。從高達1000V和10A的交流/直流電壓和電流測量，到包括電阻和電容檢查在內的全面功能，15B+是您解決各類電氣問題的首選工具。
CAT III 600V的安全等級能夠讓您安心，無論是進行電氣設備和家電的常規檢查、測試插座或開關的電壓水平，還是診斷電路問題。無論是DIY愛好者，還是剛入行的電工尋求簡化工具組，Fluke 15B+都是您工具箱中可靠且多功能的必備利器。
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).
| Function | Range | Resolution | Accuracy | |
|
AC volts (40 Hz to 500Hz)1 |
4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
1.0 % + 3 | |
| DC volts |
4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
0.5 % + 3 | |
| AC millivolts | 400.0 mV | 0.1 mV | 3.0 % + 3 | |
| DC millivolts | 400.0 mV | 0.1 mV | 1.0 % + 10 | |
| Diode test2 | 2.000 V | 0.001 V | 10% | |
|
Resistance (Ohms) |
400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3 |
|
| Capacitance3 |
40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 |
|
|
AC current μA (40 Hz to 400 Hz) |
400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5 % + 3 | |
|
AC current mA (40 Hz to 400 Hz) |
40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5 % + 3 | |
|
AC current A (40 Hz to 400 Hz) |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
| DC current μA |
400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5 % + 3 | |
| DC current mA |
40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5 % + 3 | |
| DC current A |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
| Backlight | Yes | |||
|
1All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. 2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. 3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). |
||||
| Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio |
| AC volts | 1000 V 1 | >10 MΩ <100 pF |
>60 dB at dc, 50 Hz or 60 Hz |
- |
| AC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | - |
| DC volts | 1000 V 1 | >10 MΩ <100 pF |
>100 dB at dc, 50 Hz or 60 Hz |
>60 dB at 50 Hz or 60 Hz |
| DC millivolts | 400 mV | >1MΩ, <100 pF | >80 dB at 50 Hz or 60 Hz | - |
| 1 106 V Hz Max | ||||
| General Specifications | |
| Maximum voltage between any terminal and earth ground | 1000 V |
| Display (LCD) | 4000 counts, updates 3/sec |
| Battery type | 2 AA, NEDA 15A, IEC LR6 |
| Battery life | 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.) |
| Temperature | |
| Operating | 0 °C to 40 °C |
| Storage | -30 °C to 60 °C |
| Relative Humidity | |
| Operating humidity |
Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C |
|
40 MΩ range ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C |
|
| Altitude | |
| Operating | 2000 m |
| Storage | 12,000 m |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs |
440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (HxWxL) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
| IP rating | IP 40 |
| Safety | IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2 |
| Electromagnetic environment | IEC 61326-1: Portable |
| Electromagnetic compatibility | Applies to use in Korea only |
|
Class A equipment (industrial broadcasting & communication equipment)1 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. |
|
| Test Leads | |
| TL175 | TL175 TwistGuard™ Test Leads |
